In this post I will demonstrate how to configure JPA implementation Hibernate on Karaf platform on JBoss fuse 7.4.
You can access the whole code base using following github location.
Prerequisites
- You should have install java 1.8 or above.
- You should have IDE installed in your PC in my case I'm using IntelliJ IDEA.
- Your PC should setup Maven installed and configured.
- Your PC should install and setup SQLServer.
Creating parent and child projects
Before you create the project make sure to add FUSE 7.4 related maven configureation file in to your system .m2 folder(Default location would be C:\Users\<windows user name>\.m2). You can download it from following location.
Then Open InteliJ IDEA and go to File->New->Project then you could see similar interface in the figure below. Then select Maven on left hand side, then select installed JDK installed in your PC. Then click on next button.
 |
| Add Project view |
Then you will be able to see similar to below figure. I will provide following details
Name : FuseHibernate_MSSQL
GrouupId : com.fuse.hibernate.example
ArtifactId : FuseHibernate
Version : 1.0-SNAPSHOT
Then click finish.
 |
| Provide project details |
Now we have created our parent project. First of all we can delete src folder on the project since this is the parent project. Lets add child modules by right click on project and New -> Module and then select Maven and JDK as same as previous step. Then click next. In next interface provide following details related to Feature module.
Name : Model
Then once it added to the parent project I have added <name>Feature module</name> under the <artifactId></artifactId> tag.
similarly add other three modules by providing module name as "Model", "Service" and "Application". Make sure to give different name for name tag in the each modules pom file. Then after successful adding you could see your project structure and parent pom file similar to below figure.
 |
| After successful add new modules in to parent project |
Then lets add relative configuration and dependencies in to parent project. Open the parent pom file and properties, dependencies as below.
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.fuse.hibernate.example</groupId>
<artifactId>FuseHibernate</artifactId>
<packaging>pom</packaging>
<version>1.0-SNAPSHOT</version>
<modules>
<module>Model</module>
<module>Feature</module>
<module>Service</module>
<module>Application</module>
</modules>
<properties>
<aries.skip.version.check>true</aries.skip.version.check>
<maven.compiler.target>1.8</maven.compiler.target>
<maven.compiler.source>1.8</maven.compiler.source>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
<version.org.apache.cxf>7.4.0.fuse-740036-redhat-00002</version.org.apache.cxf>
<version.fuse-karaf-bom>7.4.0.fuse-740036-redhat-00002</version.fuse-karaf-bom>
<version.plugin.felix.maven-bundle-plugin>3.5.1</version.plugin.felix.maven-bundle-plugin>
<version.aries.jpa>2.6.1</version.aries.jpa>
<version.plugin.maven-resources-plugin>3.0.2</version.plugin.maven-resources-plugin>
<version.plugin.mojo.build-helper-maven-plugin>3.0.0</version.plugin.mojo.build-helper-maven-plugin>
<version.plugin.maven-surefire-plugin>2.20.1</version.plugin.maven-surefire-plugin>
</properties>
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.jboss.fuse</groupId>
<artifactId>jboss-fuse-parent</artifactId>
<version>7.1.0.fuse-710023-redhat-00001</version>
<scope>import</scope>
<type>pom</type>
</dependency>
</dependencies>
</dependencyManagement>
<build>
<pluginManagement>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-surefire-plugin</artifactId>
<version>${version.plugin.maven-surefire-plugin}</version>
</plugin>
<plugin>
<groupId>org.apache.felix</groupId>
<artifactId>maven-bundle-plugin</artifactId>
<version>${version.plugin.felix.maven-bundle-plugin}</version>
<extensions>true</extensions>
</plugin>
<plugin>
<groupId>org.apache.karaf.tooling</groupId>
<artifactId>karaf-maven-plugin</artifactId>
<version>${version.org.apache.karaf}</version>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-resources-plugin</artifactId>
<version>${version.plugin.maven-resources-plugin}</version>
</plugin>
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>build-helper-maven-plugin</artifactId>
<version>${version.plugin.mojo.build-helper-maven-plugin}</version>
</plugin>
<plugin>
<groupId>org.apache.karaf.tooling</groupId>
<artifactId>karaf-services-maven-plugin</artifactId>
<version>4.2.1</version>
<executions>
<execution>
<id>service-metadata-generate</id>
<phase>process-classes</phase>
<goals>
<goal>service-metadata-generate</goal>
</goals>
</execution>
</executions>
</plugin>
</plugins>
</pluginManagement>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-surefire-plugin</artifactId>
<configuration>
<skipTests>${skip.quickstarts.tests}</skipTests>
</configuration>
</plugin>
</plugins>
</build>
</project>
Feature module configuration
First lets delete the java folder under main folder in the project structure and then add new Feature folder in main folder. Then Right click on feature folder and add new xml file call "feature.xml". Add following content in to that files. Note that this will be refer to other sub modules added in the previous steps, So if you change the artifact ids, make sure to update the xml based on your modification.
<?xml version="1.0" encoding="UTF-8"?>
<features name="osgi-customer-management-${project.version}"
xmlns="http://karaf.apache.org/xmlns/features/v1.3.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://karaf.apache.org/xmlns/features/v1.3.0 http://karaf.apache.org/xmlns/features/v1.3.0">
<feature name="osgi-customer-management-datasource" version="${project.version}">
<config name="org.ops4j.datasource-customer-management">
osgi.jdbc.driver.class=com.microsoft.sqlserver.jdbc.SQLServerDriver
osgi.jdbc.driver.name=mssql
databaseName=customer-management
url=jdbc:sqlserver://LAPTOP-E0A1RCAN:1433;databaseName=customer-management
user=nirmal
password=Test123_
dataSourceName=customer-management
org.apache.karaf.features.configKey = org.ops4j.datasource-customer-management
</config>
<capability>osgi.service;javax.persistence.EntityManager;objectClass=javax.sql.DataSource;
osgi.jndi.service.name=customer-management</capability><!--;effective:=active-->
</feature>
<feature name="Model" version="${project.version}">
<feature>transaction</feature>
<feature>jndi</feature>
<feature>pax-jdbc-config</feature>
<feature>pax-jdbc-h2</feature>
<feature>pax-jdbc-mssql</feature>
<feature>pax-jdbc-pool-dbcp2</feature>
<feature>jdbc</feature>
<feature dependency="true">aries-blueprint</feature>
<feature version="[2,3)">jpa</feature>
<feature version="[5,6)">hibernate</feature>
<bundle>mvn:com.fuse.hibernate.example/Model/${project.version}</bundle>
</feature>
<feature name="Service" version="${project.version}">
<feature version="${project.version}">Model</feature>
<bundle>mvn:com.fuse.hibernate.example/Service/${project.version}</bundle>
<capability>osgi.service;objectClass=javax.persistence.spi.PersistenceProvider;
effective:=active;javax.persistence.provider=org.hibernate.jpa.HibernatePersistenceProvider</capability>
</feature>
<feature name="Application" version="${project.version}">
<feature version="${project.version}">Model</feature>
<feature version="${project.version}">Service</feature>
<bundle>mvn:com.fuse.hibernate.example/Application/${project.version}</bundle>
</feature>
</features>
Following section is for the database configuration and make sure to create relevant database in MSSQL server and provide your server details on url,user,password sections.
<feature name="osgi-customer-management-datasource" version="${project.version}">
<config name="org.ops4j.datasource-customer-management">
osgi.jdbc.driver.class=com.microsoft.sqlserver.jdbc.SQLServerDriver
osgi.jdbc.driver.name=mssql
databaseName=customer-management
url=jdbc:sqlserver://LAPTOP-E0A1RCAN:1433;databaseName=customer-management
user=nirmal
password=Test123_
dataSourceName=customer-management
org.apache.karaf.features.configKey = org.ops4j.datasource-customer-management
</config>
<capability>osgi.service;javax.persistence.EntityManager;objectClass=javax.sql.DataSource;
osgi.jndi.service.name=customer-management</capability><!--;effective:=active-->
</feature>
Then lets go to Feature module pom file and add relevant details. Make sure to update packageing as pom for this module.
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>FuseHibernate</artifactId>
<groupId>com.fuse.hibernate.example</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>Feature</artifactId>
<name>Feature module</name>
<packaging>pom</packaging>
<build>
<resources>
<resource>
<directory>src/main/feature</directory>
<filtering>true</filtering>
<targetPath>${project.build.directory}/feature</targetPath>
</resource>
</resources>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-resources-plugin</artifactId>
<executions>
<execution>
<goals>
<goal>resources</goal>
</goals>
</execution>
</executions>
</plugin>
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>build-helper-maven-plugin</artifactId>
<executions>
<execution>
<id>attach-artifacts</id>
<phase>package</phase>
<goals>
<goal>attach-artifact</goal>
</goals>
<configuration>
<artifacts>
<artifact>
<file>target/feature/feature.xml</file>
<type>xml</type>
</artifact>
</artifacts>
</configuration>
</execution>
</executions>
</plugin>
</plugins>
</build>
</project>
Now our Feature module is ready to deploy.
Model module configuration
First lets update the pom file with relevant dependencies.
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>FuseHibernate</artifactId>
<groupId>com.fuse.hibernate.example</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>Model</artifactId>
<name>Model</name>
<packaging>bundle</packaging>
<dependencies>
<dependency>
<groupId>org.eclipse.persistence</groupId>
<artifactId>javax.persistence</artifactId>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.apache.felix</groupId>
<artifactId>maven-bundle-plugin</artifactId>
<configuration>
<instructions>
<Export-Package>com.fuse.hibernate.example.model</Export-Package>
<Import-Package>
javax.persistence;version="[2,3)",
org.hibernate.proxy,
javassist.util.proxy,
org.hibernate.jpa,
*
</Import-Package>
</instructions>
</configuration>
</plugin>
</plugins>
</build>
</project>
Then lets add our Model class in to the project by right click on java folder in model Module. The add following content which represent our database table.
package com.fuse.hibernate.example.model;
import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlRootElement;
import java.io.Serializable;
import java.math.BigInteger;
import javax.persistence.*;
@XmlRootElement(name="Person")
@XmlAccessorType(XmlAccessType.PROPERTY)
@Entity
@Table(name="Person")
public class Person implements Serializable
{
private static final long serialVersionUID = 1L;
private BigInteger id;
private String name;
private String city;
private String country;
public Person()
{
}
public Person(String firstName, String city, String country)
{
this.name = firstName;
this.city = city;
this.country = country;
}
public Person (Person person)
{
this (person.name, person.city, person.country);
}
@Id
@SequenceGenerator(name = "PERSON_ID_GENERATOR", sequenceName = "PERSONS_SEQ")
@GeneratedValue(strategy = GenerationType.SEQUENCE, generator = "PERSON_ID_GENERATOR")
@Column(name = "PERSON_ID", unique = true, nullable = false, length = 8)
public BigInteger getId()
{
return id;
}
public void setId(BigInteger id)
{
this.id = id;
}
@XmlElement
@Column(name = "PERSON_NAME", nullable = false, length = 40)
public String getName()
{
return name;
}
public void setName(String name)
{
this.name = name;
}
@XmlElement
@Column(name = "ADDRESS_CITY", nullable = false, length = 80)
public String getCity()
{
return city;
}
public void setCity(String city)
{
this.city = city;
}
@XmlElement
@Column(name = "ADDRESS_COUNTRY", nullable = false, length = 40)
public String getCountry()
{
return country;
}
public void setCountry(String country)
{
this.country = country;
}
@Override
public String toString() {
return "Person{" +
"id=" + id +
", name='" + name + '\'' +
", city='" + city + '\'' +
", country='" + country + '\'' +
'}';
}
}
If you see the pom file on the Model module you can see we have added this class reference in the build section as show in below. If you have more packages make sure to add those packages in to this tag by comma separated.
<Export-Package>com.fuse.hibernate.example.model</Export-Package>
Service module configuration
First lets update the pom file with relevant dependencies.
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>FuseHibernate</artifactId>
<groupId>com.fuse.hibernate.example</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>Service</artifactId>
<name>Service</name>
<packaging>bundle</packaging>
<dependencies>
<dependency>
<groupId>org.eclipse.persistence</groupId>
<artifactId>javax.persistence</artifactId>
</dependency>
<dependency>
<groupId>javax.transaction</groupId>
<artifactId>javax.transaction-api</artifactId>
</dependency>
<dependency>
<groupId>com.fuse.hibernate.example</groupId>
<artifactId>Model</artifactId>
<version>1.0-SNAPSHOT</version>
<type>bundle</type>
</dependency>
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-entitymanager</artifactId>
</dependency>
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-osgi</artifactId>
</dependency>
<dependency>
<groupId>javax.interceptor</groupId>
<artifactId>javax.interceptor-api</artifactId>
<version>1.2</version>
</dependency>
<!-- <dependency>-->
<!-- <groupId>com.fuse.hibernate.example.model</groupId>-->
<!-- <artifactId>Model</artifactId>-->
<!-- <version>1.0-SNAPSHOT</version>-->
<!-- <scope>compile</scope>-->
<!-- </dependency>-->
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.apache.felix</groupId>
<artifactId>maven-bundle-plugin</artifactId>
<configuration>
<instructions>
<Meta-Persistence>META-INF/persistence.xml</Meta-Persistence>
<Import-Package>
javax.persistence;version="[2,3)",
org.hibernate.jpa;version="[5,6)",
*
</Import-Package>
</instructions>
</configuration>
</plugin>
</plugins>
</build>
</project>
Then lets add PersonService Interface and PersonServiceIml class with following content. This will used to access database and persist data.
PersonService Interface
package com.fuse.hibernate.example.service;
import java.math.BigInteger;
import java.util.List;
import com.fuse.hibernate.example.model.Person;
public interface PersonService {
public Person createPerson (Person person);
public void removePerson (Person person);
public void removePersonById (BigInteger id);
public Person findPerson (String name);
public List<Person> findPersons();
public void updateCustomer (Person person);
}
PersonServiceIml class
package com.fuse.hibernate.example.service;
import com.fuse.hibernate.example.model.Person;
import java.math.*;
import java.util.*;
import javax.persistence.*;
import javax.persistence.criteria.*;
import javax.transaction.*;
import javax.transaction.Transactional.*;
@Transactional
public class PersonServiceImpl implements PersonService
{
@PersistenceContext(unitName = "persons")
private EntityManager em;
@Override
public Person createPerson(Person person) {
em.persist(person);
em.flush();
return person;
}
@Override
public void removePerson(Person person) {
em.remove(person);
}
@Override
public void removePersonById(BigInteger id) {
em.remove(em.find(Person.class, id));
}
@Transactional(TxType.SUPPORTS)
@Override
public Person findPerson(String name) {
return em.find(Person.class, name);
}
@Transactional(TxType.SUPPORTS)
@Override
public List<Person> findPersons() {
CriteriaQuery<Person> query = em.getCriteriaBuilder().createQuery(Person.class);
return em.createQuery(query.select(query.from(Person.class))).getResultList();
}
@Override
public void updateCustomer(Person person) {
em.persist(person);
}
}
Then lets create "META-INF" folder inside resource folder. Then add persistence.xml with following content.
<?xml version="1.0" encoding="UTF-8"?>
<persistence version="2.0" xmlns="http://java.sun.com/xml/ns/persistence" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/persistence http://java.sun.com/xml/ns/persistence/persistence_2_0.xsd">
<persistence-unit name="persons" transaction-type="JTA">
<provider>org.hibernate.jpa.HibernatePersistenceProvider</provider>
<jta-data-source>osgi:service/javax.sql.DataSource/(osgi.jndi.service.name=customer-management)</jta-data-source>
<class>com.fuse.hibernate.example.model.Person</class>
<properties>
<!-- <property name="hibernate.dialect" value="org.hibernate.dialect.H2Dialect" />-->
<property name="hibernate.dialect" value="org.hibernate.dialect.SQLServer2012Dialect" />
<property name="hibernate.hbm2ddl.auto" value="update" />
<property name="hibernate.show_sql" value="true"/>
</properties>
</persistence-unit>
</persistence>
Then lets add blueprint.xml with following content.
<?xml version="1.0" encoding="UTF-8"?>
<blueprint xmlns="http://www.osgi.org/xmlns/blueprint/v1.0.0" xmlns:jpa="http://aries.apache.org/xmlns/jpa/v2.0.0" xmlns:tx="http://aries.apache.org/xmlns/transactions/v1.2.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.osgi.org/xmlns/blueprint/v1.0.0 https://www.osgi.org/xmlns/blueprint/v1.0.0/blueprint.xsd
http://camel.apache.org/schema/blueprint http://camel.apache.org/schema/blueprint/camel-blueprint.xsd">
<jpa:enable />
<tx:enable-annotations />
<service ref="personService" interface="com.fuse.hibernate.example.service.PersonService" />
<bean id="personService" class="com.fuse.hibernate.example.service.PersonServiceImpl" />
<bean
class="com.fuse.hibenate.example.app.ExchangeProcessor" id="exchangeProcessor">
<property name="personService" ref="personService"/>
</bean>
</blueprint>
Application module configuration
First lets update the pom file with relevant dependencies.
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>FuseHibernate</artifactId>
<groupId>com.fuse.hibernate.example</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>Application</artifactId>
<name>OSGi Application</name>
<packaging>bundle</packaging>
<dependencies>
<dependency>
<groupId>com.fuse.hibernate.example</groupId>
<artifactId>Service</artifactId>
<version>1.0-SNAPSHOT</version>
<scope>compile</scope>
</dependency>
<dependency>
<groupId>org.apache.camel</groupId>
<artifactId>camel-core</artifactId>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.apache.karaf.shell</groupId>
<artifactId>org.apache.karaf.shell.core</artifactId>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.apache.karaf.tooling</groupId>
<artifactId>karaf-services-maven-plugin</artifactId>
</plugin>
<plugin>
<groupId>org.apache.felix</groupId>
<artifactId>maven-bundle-plugin</artifactId>
<configuration>
<instructions>
<Private-Package>com.fuse.hibernate.example.app</Private-Package>
<Import-Package>com.fuse.hibernate.example.model,org.hibernate.jpa, org.apache.karaf.shell*;version="[4,5)", *</Import-Package>
</instructions>
</configuration>
</plugin>
</plugins>
</build>
</project>
Then lets create our customized camel process "ExchangeProcessor" class with following content.
package com.fuse.hibernate.example.app;
import com.fuse.hibernate.example.model.Person;
import com.fuse.hibernate.example.service.PersonServiceImpl;
import org.apache.camel.Exchange;
import org.apache.camel.Processor;
import org.apache.karaf.shell.api.action.lifecycle.Reference;
import org.apache.karaf.shell.api.action.lifecycle.Service;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.util.List;
@Service
public class ExchangeProcessor implements Processor {
@Reference
private PersonServiceImpl personService;
static Logger LOG = LoggerFactory.getLogger(ExchangeProcessor.class);
@Override
public void process(Exchange exchange) throws Exception {
LOG.info("INSIDE PROCESS:##:"+ exchange.getIn().getBody(Person.class));
Person p =exchange.getIn().getBody(Person.class);
personService.createPerson(p);
List<Person> list=personService.findPersons();
LOG.info("output list.size::::::"+list.size());
}
public PersonServiceImpl getPersonService() {
return personService;
}
public void setPersonService(PersonServiceImpl personService) {
this.personService = personService;
}
}
Then create "OSGI-INF" folder inside resource folder and create another folder call "blueprint" inside OSGI-INF. Then add blueprint.xml file with following content.
<?xml version="1.0" encoding="UTF-8"?>
<blueprint xmlns="http://www.osgi.org/xmlns/blueprint/v1.0.0" xmlns:jpa="http://aries.apache.org/xmlns/jpa/v2.0.0" xmlns:tx="http://aries.apache.org/xmlns/transactions/v1.2.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.osgi.org/xmlns/blueprint/v1.0.0 https://www.osgi.org/xmlns/blueprint/v1.0.0/blueprint.xsd
http://camel.apache.org/schema/blueprint http://camel.apache.org/schema/blueprint/camel-blueprint.xsd">
<jpa:enable />
<tx:enable-annotations />
<service ref="personService" interface="com.fuse.hibernate.example.service.PersonService" />
<bean id="personService" class="com.fuse.hibernate.example.service.PersonServiceImpl" />
<bean
class="com.fuse.hibernate.example.app.ExchangeProcessor" id="exchangeProcessor">
<property name="personService" ref="personService"/>
</bean>
<camelContext xmlns="http://camel.apache.org/schema/blueprint"
id="cbr-example-context" >
<route id="cbr-route" >
<from uri="file:work/cbr/input" />
<log message="Sending order ${file:name} to another country" />
<log id="logStatusIncident" message="OrderDetails Call ${body}"/>
<to uri="file:work/cbr/output/others" />
<convertBodyTo type="java.lang.String"/>
<process ref="exchangeProcessor"/>
<log message="${body}" />
</route>
</camelContext>
</blueprint>
Now we our application is ready to deploy in FUSE 7.4. First go to parent project and perform mvn clean install operation. Then you could see all the dependencies downloaded and finally all the artifacts generating successfully.
Create Database
Lets go to SQL Server Management studio and go to database section in right hand side. Then right click on Databases and click "New Databases" then provide database name as "customer-management". Then make sure to set Database user as the user you configured in the feature configuration. In my case im using user as "nirmal" as show in below figure.
 |
| Assign Owner of the database as your login user. |
Then click Ok. Now we have created our database for the application.
FUSE 7.4 configuration
Download the fuse from official web page (Makes sure to download 7.4 version of Karaf Installer )and extract in to desired location.
Then modify the <FUSE_BASE_DIRECTORY>\etc\users.properties by un-commenting last two lines of the properties file.
 |
| Un comment last two lines by removing "#" signs in front of last two lines. |
Then lets start FUSE server by running "fuse.bat" on <FUSE_BASE_DIRECTORY>\bin directory. Then lets first install our database driver dependencies in to FUSE by executing following commands one after another.
osgi:install -s mvn:com.microsoft.sqlserver/mssql-jdbc/7.4.1.jre8
osgi:install -s mvn:org.ops4j.pax.jdbc/pax-jdbc-mssql/1.3.5
Once you successfully installed the above two bundles you can see similar output to following figure.
 |
| After successful installation of database driver dependencies |
Then lets install following commands one by one
feature:repo-add mvn:com.fuse.hibernate.example/Feature/1.0-SNAPSHOT/xml
feature:install osgi-customer-management-datasource
feature:install Model
feature:install Service
feature:install Application
Then you should see following output when all the commands success.
 |
| After installation of all modules you can see similar output on fuse console |
Also you can verify the sucessfull installation by accessing the fuse web console on following URL. When accessing provide default user name and password as "admin".
 |
| Fuse web will show camel section on left hand side and you can see the cbr-route |
Now our application is running on fuse.
Test the functionality
First go to your fuse installation directory on your PC and then you could see following new folder created on there.
 |

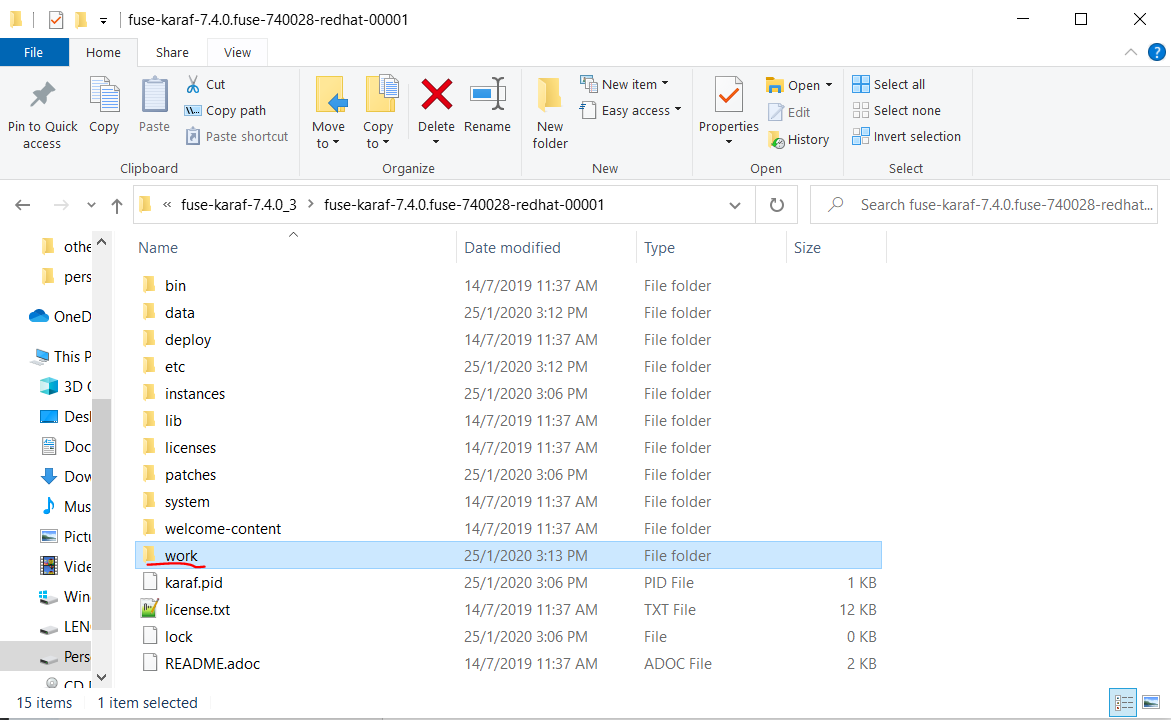

| Newly created work folder inside the FUSE installation directory. |
Then go to "\work\cbr\input" directory and put sample person.xml file. Then put second person1.xml file on to the same directory. Based on our application logic data in two files should be saved in to the database and two files should move to "\work\cbr\output\others" directory. If you go to that spesific "\work\cbr\output\others" directory you could see those two files. Then go to your configured database and retrieve the data from person table. You could see data has been saved in to the database successfully.
 |
| Database table containing two records |
You can download the entire source code from following GIT hub URL.
